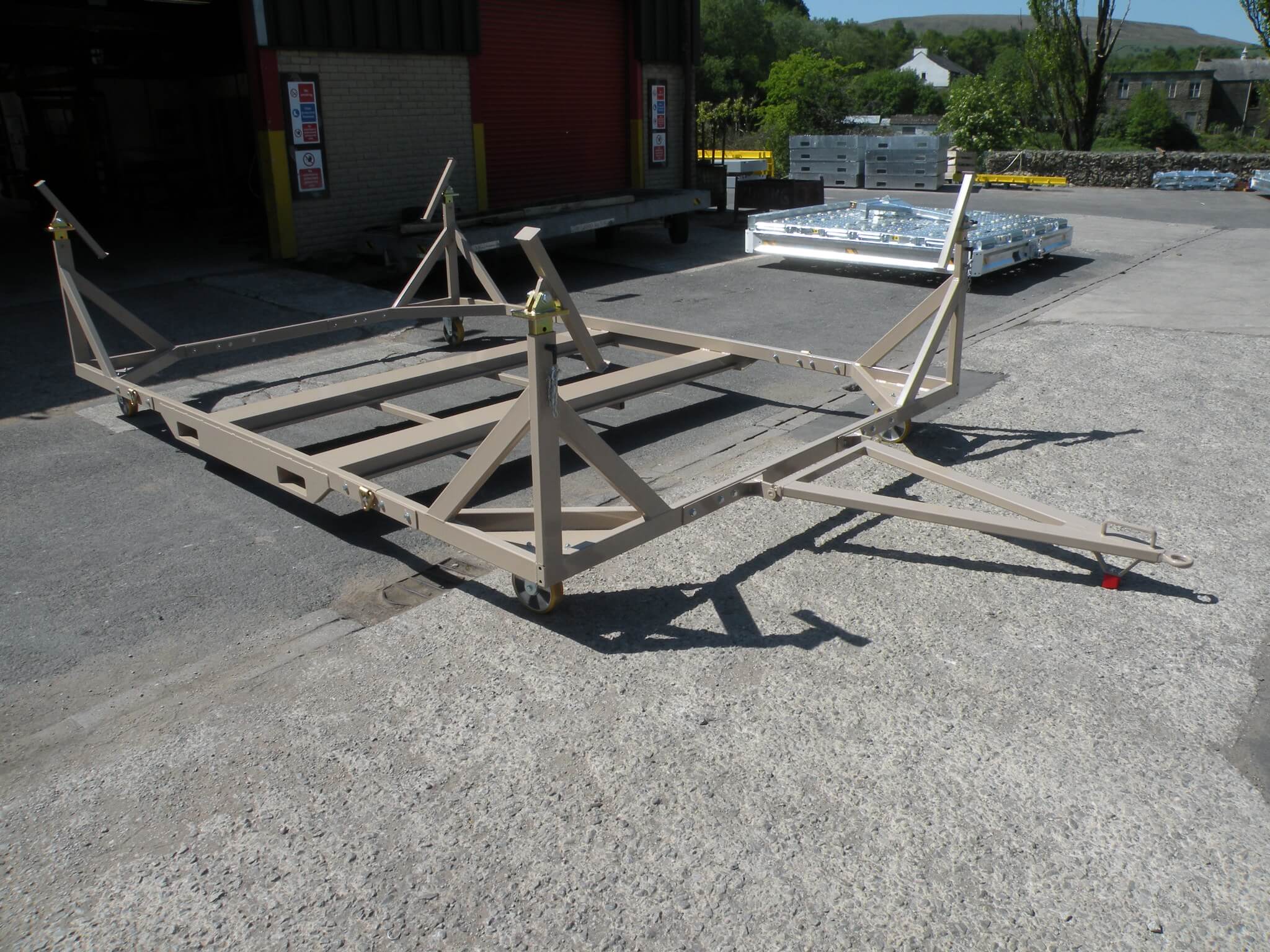

In this project we were responsible for the Design, manufacture, supply & delivery of a C-130 Rear (Aft) Cargo Door Dolly Capacity 2.000 KG
NEW SUPPLY OF 1 OFF TUBEULAR GALVANIZED BOX FRAMED 80X40X3 TROLLIE WITH CORNER
SUPPORTS FITTED WITH BLICKLE POLYURETHANE TYRED CASTOR
WHEELS CASTOR WHEEL REFERANCES 2 0FF LH-ATTH200K-FI SWIVEL WITH BRAKES AND 2 OFF
BH-ALTH 200K FIXED TO ALLOW TOWING OVER THE AIRPORT RUNWAY AND TARMAC ROAD
SURFACES AT SLOW SPEED.
· TOWABLE WITH 30-50MM EYE FIXED INTO A PIVIOTING TOW BAR BOLT ABLE TO ALLOW SHIPMERNT
AND WET PAINT COATING OF.
· DIMENSIONS :231″ / 5870MM LONG 131″/3330MM WIDE AND 45.5″ 1155MM TALL
· CARRIAGE CAPACITY:
· TO THE TOP OF EACH CORNER GUSSETED POSTS, EACH POST HAVING A RUBBER COVERED
SURFACE TO ALLOW THE CAREFUL LOADING PLACEMENT OF MILITARY
C-130 Rear (Aft) Cargo Door TRANSPORTATION ON AND AROUND SITE
