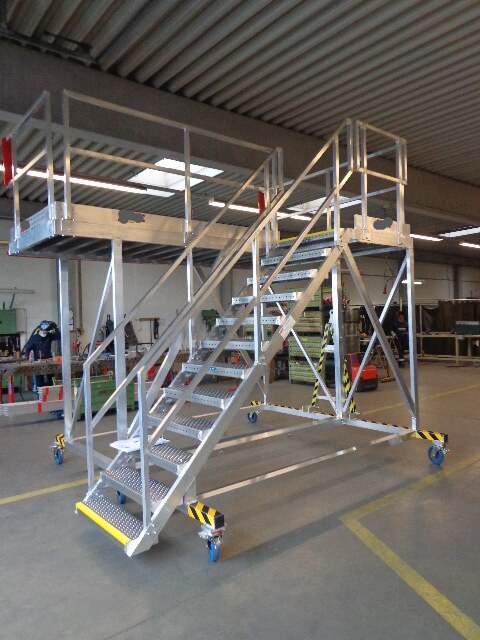

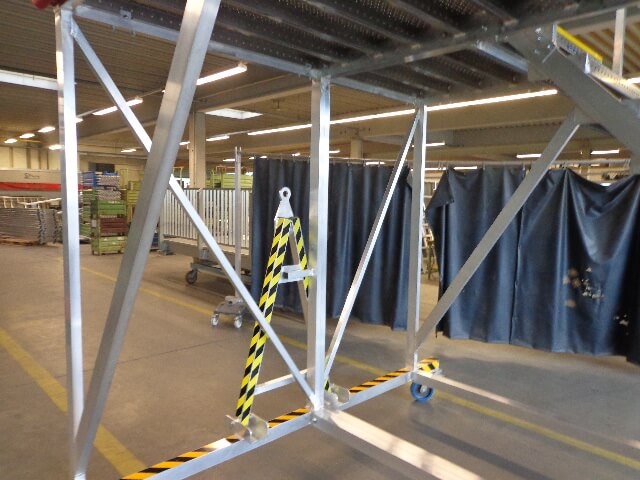

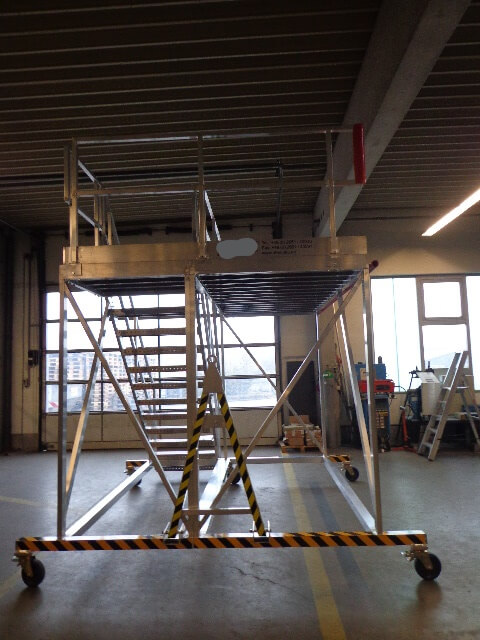

The project included the design, manufacture and delivery of an aircraft maintenance platform.
The aluminum platform allows the stuff, to have easy access to the aircraft parts that need maintenance with following silent characteristics:
Platform height: 2,540mm
Platform width: 1,168mm / 1,371mm
Platform length: 3,658mm
Stair width: 914mm
Total height: 3,640mm
Inclination: 45 °
Number of levels: 11

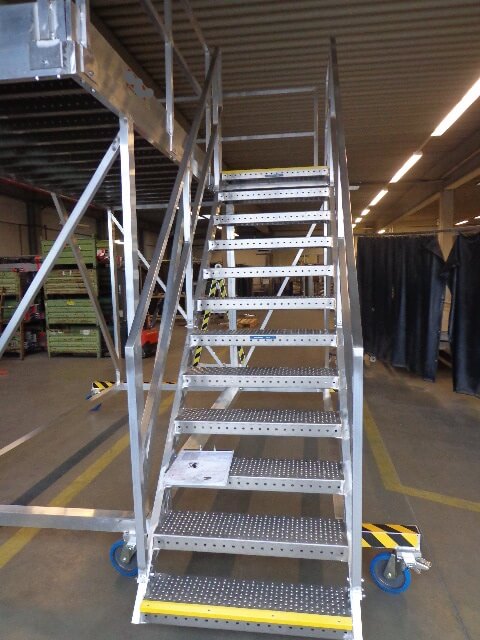

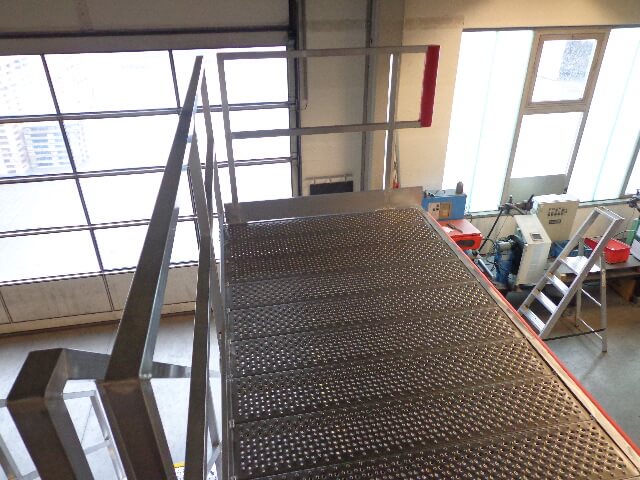

Tread: Sheet metal profile grating, slip class R13 perforated sheet
Step covering: Sheet metal profile grating, slip class R13 perforated sheet

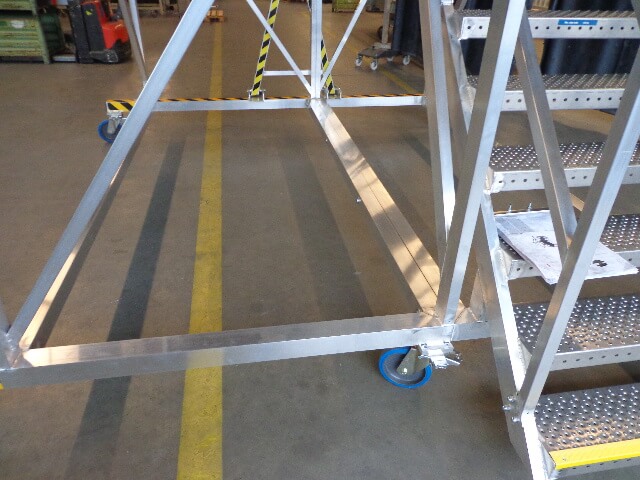

Chassis: 5 x castors with brakes
Handrail stairs: on both sides

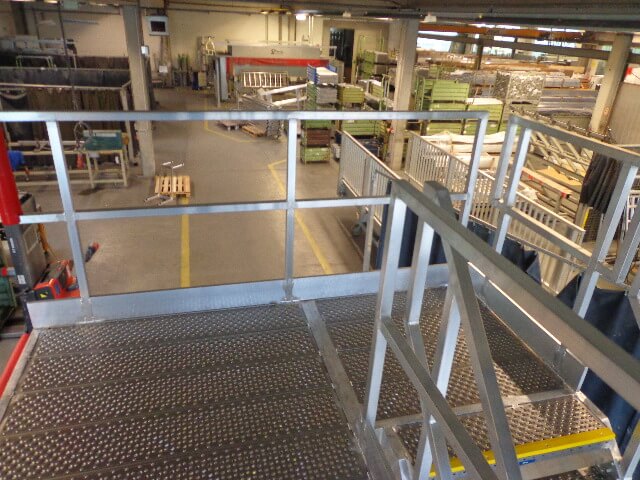

Railing on the left+ front side incl. 3-part side protection consisting of Handrail, knee protection and baseboard
Galvanized steel tow bar with T-handle quick release

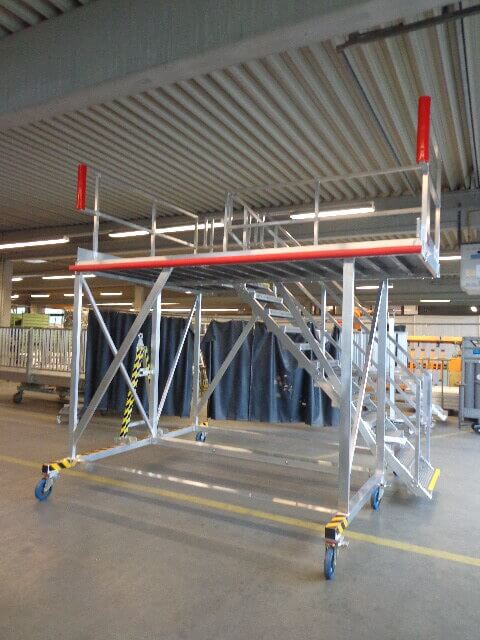

Foam bumpers inserts on open side to protect aircraft from damage
Payload: 300kg
Step load: 150kg
Based on DIN EN ISO 14 122
Want to find out more about this project? Or discuss your own requirements? Contact with us and speak to one of our experts.
